Proceq GS8000 LITE

GROUND PENETRATING RADAR SCANNER PACKAGES

Capture and Map what lies beneath

Subsurface Mapping GPR - GS8000 LITE

The most efficient real-time workflow and technology to scan and digitize the subsurface

Get a clear image of the underground in 2D and 3D as you walk
Digitize on-site findings on the map and send to CAD/GIS
Access to your data from anywhere, anytime

Applications:

Damage prevention / Excavation safety / Utility locating & mapping / Subsurface utility engineering (SUE) / Surveying & Reality Capture / Road inspection / Bridge inspection / Geophysical investigations / Archaeology / Forensics & UXO / Precision Agriculture

Advanced Suite Lite

Proceq GS8000 Lite Subsurface Mapping System consisting of: GS8000 Lite pushcart, integrated GPR sensor (Stepped Frequency: 40-3440 MHz), tablet holder with sunshade cover, power supply, cables, Wi-Fi module, basic tools & accessories, documentation. Advanced Suite GS8000 Lite License (5 years included).

Includes:

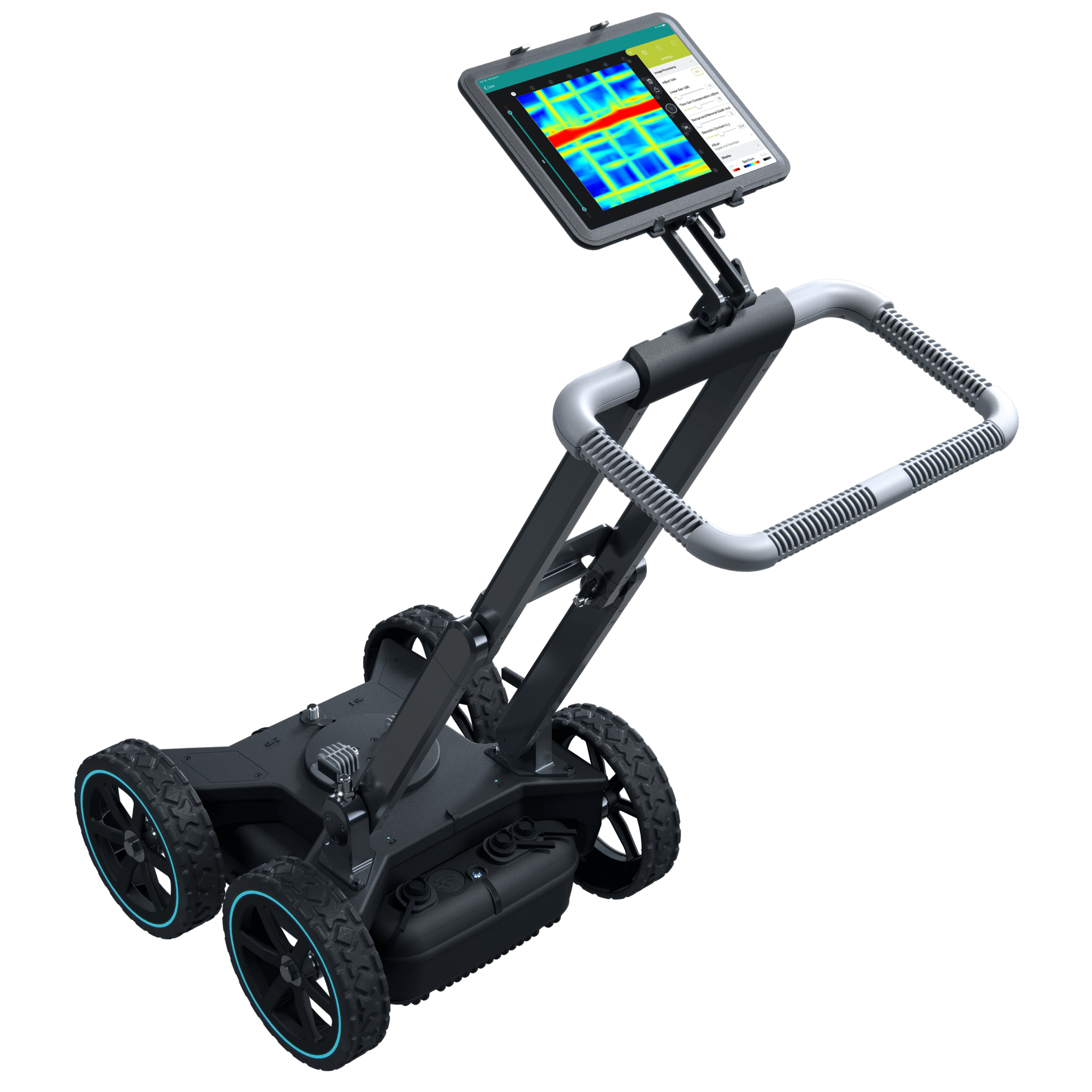

        • GS8000 Lite pushcart
        • Stepped frequencies 40-3440 MHz

+

5 years of:

        • Workspace
        • Grid + Line Scans


Advanced Suite – Upgrade from Lite to PRO

(one-time fee, software only)

Advanced Suite GS8000 Lite to Pro upgrade (one-time fee)

Activates GS8000 Pro Advanced features (Free Path method, SSR corrections for MA8000, Local coordinate system transformations, DXF/SHP/KML export) on a running GS8000 Lite contract.

PROCEQ GPR SUBSURFACE

Inspection of concrete structures with true ultrawideband radar and imaging software

Look into concrete deeply and clearly, detect objects effortlessly and reliably, and collaborate anywhere, anytime, for hit prevention, as-built verification, and structural investigation­­­—even in the toughest situations.

Thanks to unique radar technology, our rugged GPR probes deliver unparalleled resolution and penetration depth, at the same time. Together with our famously intuitive iPad app, Proceq GPR Live brings advanced inspection workflows on-site, including rich 3D and AR visualization, collaboration, and reporting.

For availability and regulatory approval of this product in your market, please check with your regional Proceq subsidiary or local dealer.

TECH SPECS GS8000 PRO

Radar technology: Stepped-frequency Continuous-Wave GPR

Modulated frequency range: 40 – 3440 MHz ²

Effective bandwidth: 3200 MHz ³

Min. detectable target size : 1 cm | 0.4 in ⁴

Max. depth penetration : 10 m | 33 ft ⁵

Scan rate: 500 Hz

Spatial interval : Up to 100 scans/m

Acquisition speed: Up to 80 Km/h | 50 mph ⁶


GNSS receiver : Multiband GPS + Glonass + Galileo + Beidou SSR augmentation ⁷ / RTK-compatible;  Dimensions : 145 x 145 x 70 mm; Weight : 0.7 Kg, 4x AA-batteries included


GNSS real-time 3D accuracy : Typ. 1 – 5 cm | 0.5 – 2 in ⁸

GNSS initialization time: Typ. 5 – 30 s

Wheel encoders: 2


Configuration: Wireless integrated push & pull cart

Weight: 24 Kg ⁹

Dimensions: 610 x 570 x 380 mm

Antenna positions: Ground-coupled with dual-axis floating Air-coupled with 25 mm clearance

Ingress protection (IP) / sealing: IP65

Power consumption: 11 W

Autonomy: Full working day, removable flight-safe battery pack & off-the-shelf power bank

Operating temperature: -10° to 50°C

Operating humidity
<95% RH, non-condensing

Connectivity
WiFi, Ethernet, USB-A, USB-B, USB-C, Lemo
